Why This Garage Door Setup Needed a Custom Electrical Solution

On most garage installs, the setup is predictable. You have a motor mounted on the ceiling, a chain or belt running down the center of the door, and a single overhead track that pulls the door up and back. It works because there is nothing in the way. The ceiling is open, the header is clean, and everything lines up the way the manufacturer expects.

This one was different.

The problem we walked into

When we opened up this garage, there was an original beam running across the ceiling that we could not remove. It was structural, and taking it out would have meant reengineering the framing above it. That was not going to happen for a garage door install. So we had to work around it.

A standard opener would not fit. The chain rail needs a clear straight run down the middle of the ceiling, and the beam was sitting right where that rail wanted to go. If we tried to force a typical setup, we would have lost head clearance, the door would not have opened all the way, and the whole system would have been fighting the space instead of working with it.

What we actually installed

Instead of the standard overhead motor and center chain, we went with a side-mount jackshaft opener. That is the motor you see mounted on the wall next to the door instead of hanging from the ceiling. It drives the torsion bar directly, so there is no chain rail running across the ceiling at all.

That solved two things at once. It kept the old beam in place because we were not routing anything through it. And it gave us back the head space we would have lost trying to make a traditional opener fit around the obstruction.

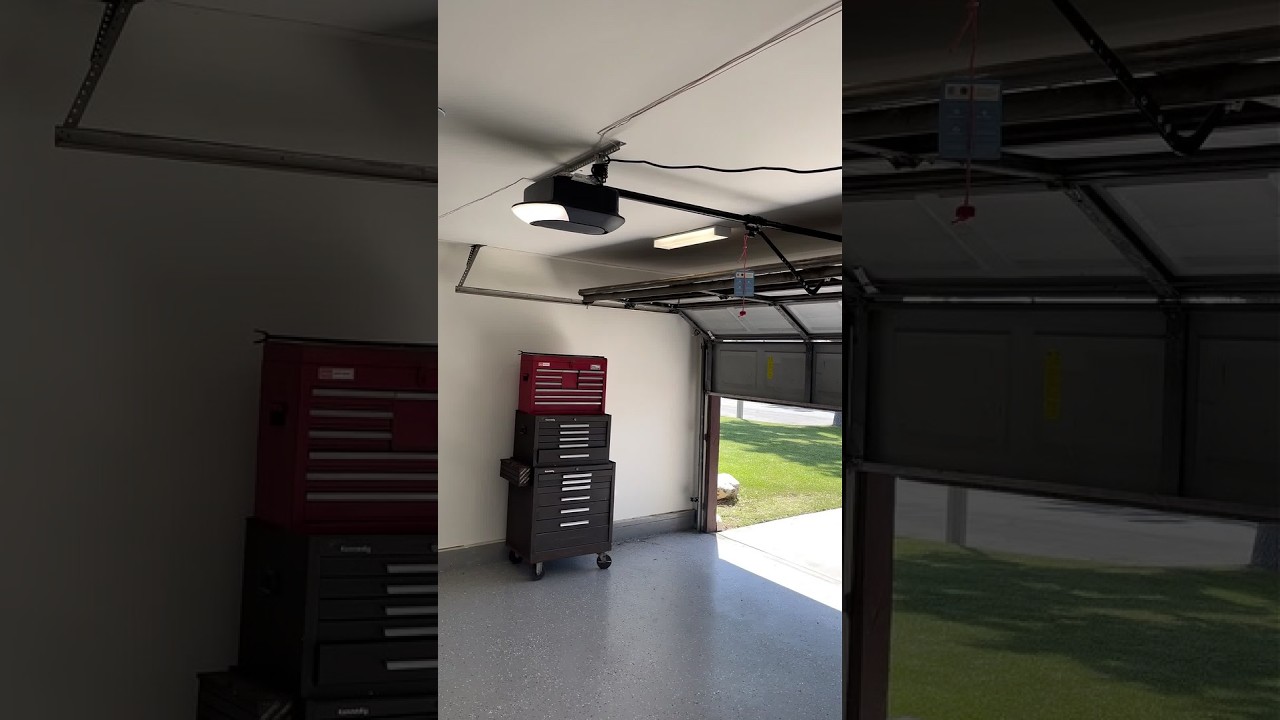

The tracks themselves also had to be adjusted. On a normal install you have a vertical track on each side of the door and a horizontal track running back into the garage. Here we did not have room for the full horizontal run on the upper track the way it would normally sit. The setup you see in the video is what we ended up with, and it works cleanly with the space we had.

Why the electrical piece matters

A side-mount opener is not a plug-and-play swap for a ceiling unit. The power needs to come to the wall next to the door, not down from the ceiling. That meant running new circuit up to where the motor sits, tying it into the panel correctly, and making sure the safety sensors and wall control were wired to the right terminals on the new unit.

This is the part homeowners do not usually see. When we quote a garage door job in an older home, we are not just quoting the door. We are looking at the framing, the ceiling, the existing electrical, and whether the standard hardware is actually going to fit. Sometimes it does. Sometimes, like on this one, you have to change the approach.

What to take away from this

If you have an older home in Scottsdale or anywhere in the Valley and you are thinking about replacing a garage door or an opener, do not assume the new one will drop into the same footprint as the old one. Ceiling obstructions, low headers, structural beams, and outdated electrical are all common on homes built more than twenty or thirty years ago.

The fix is usually not complicated once you know what you are working with. A side-mount opener, a shorter track configuration, a new electrical run, and you have a garage that works better than it did before without tearing anything apart. What matters is that whoever is doing the work actually looks at the space first instead of showing up with a standard opener in the truck and hoping it fits.

That is the piece we spend the most time on before we ever start installing. Look at what is there, figure out what has to stay, and then pick the hardware that fits the house.
