The Hidden Structural Detail You'll Never Notice

Walk through one of our projects right now and you'd step into a room with a corner that has no post in it. No column. Nothing holding it up, at least not that you can see. The roof just turns the corner and floats.

That's not an accident, and it's not magic. It's a cantilevered corner, and it's one of those details that takes real planning to pull off and then gets completely buried behind drywall. Nobody will ever see it again. We still geek out about it every time.

Here's what's actually going on up there, and why it matters if you're thinking about open corners in your own project.

What a cantilevered corner actually is

A normal corner has a post. Two walls meet, there's a king stud or a column sitting right at the intersection, and the roof load comes straight down into it. Simple, cheap, and it's how 95% of homes are built.

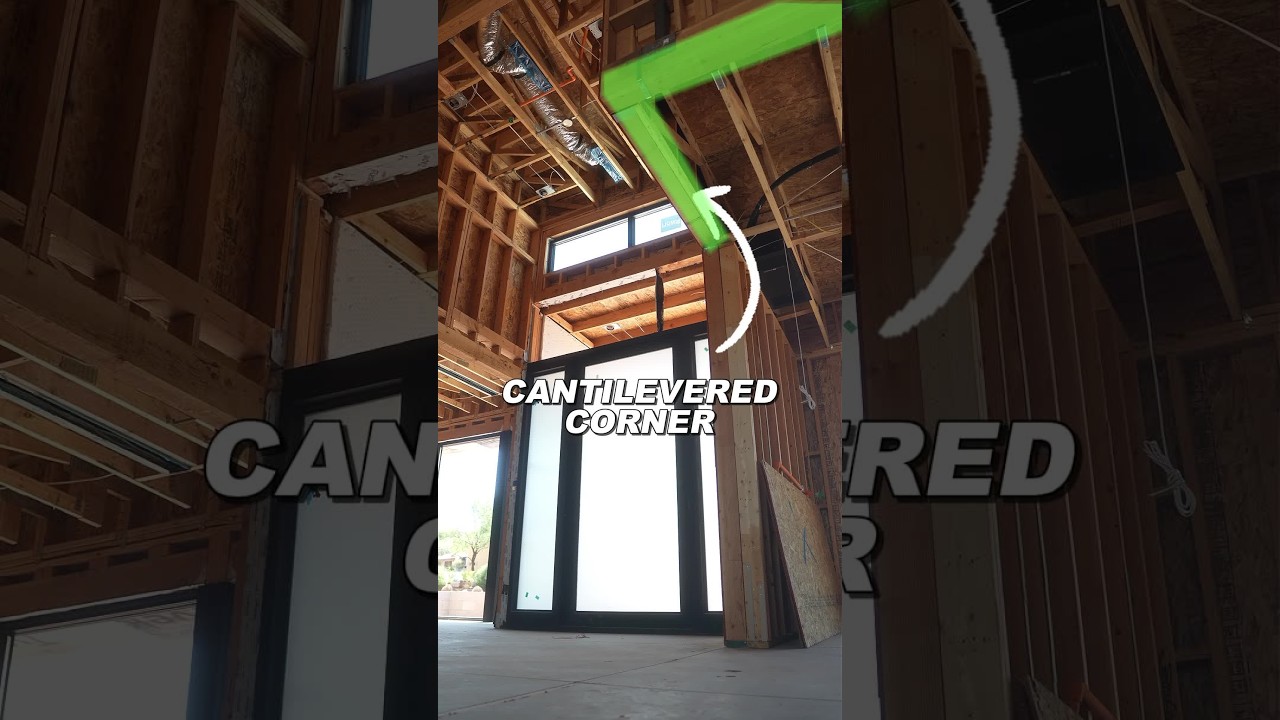

A cantilevered corner removes that post. Instead of the load going straight down at the corner, the structure reaches out from both sides and supports itself. On this project, we have a beam coming from one direction and a beam coming from the other direction. They connect at the corner, and the whole assembly is tied back to a steel post set back from the opening.

The result is an open corner. When the sliding or folding doors are open, there is nothing between inside and outside at that corner. No post, no visual break. Just space.

How the loads actually work

This is where most people's eyes glaze over, but it's worth understanding because it explains why these details cost what they cost.

Every roof carries weight. Dead load is the weight of the structure itself. Live load is everything else: people up there doing maintenance, equipment, rare Arizona snow. In a post corner, those loads have a straight path to the ground. Beam, post, footing, done.

When you remove the post, that load path has to go somewhere else. The two beams at the corner act like levers. The outer end carries the roof load, and the inner end has to be held down or held up by structure further back in the building. That means:

• The beams get bigger. Sometimes a lot bigger. Dimensional lumber often isn't enough, so you end up in LVL, glulam, or steel.
• The connections matter more than the members. The bolts, hangers, and steel post doing the actual tying together have to be engineered for the exact forces involved.
• Deflection becomes the real enemy. A cantilever can be strong enough and still bounce or sag over time. A good engineer sizes for stiffness, not just strength, because nobody wants a corner that moves when the wind picks up.

Why you'll never see it

Once we hang drywall, every bit of this disappears. The beams go up into the ceiling plane. The steel post gets buried in a wall. The corner gets finished like any other corner, except there's glass where the post would be.

That's the funny part about good structure. The better it's done, the less anyone notices it. The homeowner gets an open corner and a view. The engineer gets a calc package. We get to stand there during framing and appreciate the part of the job that nobody else will ever think about again.

Honestly, that's a lot of custom building. The things that separate a well-built home from an average one are mostly invisible by move-in day.

What it takes to do this on your project

If you want an open corner, whether it's for a great room opening to a patio or a casita with a view, here's the honest version of what it involves:

It has to be decided early. You cannot frame a normal corner and then decide to remove the post. The beam sizes, the steel, the footing, and the shear walls all depend on each other. This is a design-phase decision, not a field change.

You need a structural engineer who does residential work well. Cantilevers in production subdivisions are rare, so not every engineer has a feel for them. Ours sizes these regularly, and it shows in how clean the details come out.

It costs more than a post. More material, more engineering, more labor setting heavy beams. On most projects we're talking a few thousand dollars, not tens of thousands, but it's real money and you should know that going in.

The door system matters. An open corner usually pairs with large multi-panel doors. Those systems have their own structural demands, and the header, the track, and the cantilever have to be designed together, not as separate pieces.

Why we bother

Because it changes how a room feels. A post at the corner is a wall, visually, even when the doors are open. Remove it and the room actually extends outside. On a lot with mountain views or a pool you're proud of, that difference is the whole point.

It's also just good building. Anyone can frame a post corner. Coordinating beams, steel, and engineering so a corner can float takes planning and a crew that cares about the details nobody will see. That's the kind of work we like doing.

If you're planning a project and an open corner is on your wish list, bring it up early. It's one of the cheapest big-impact details in custom work when it's planned from day one, and one of the most expensive to add later.
